ENGINE
+
|
Engine | HD7
HD9 |
Engine Displacement | 650 |

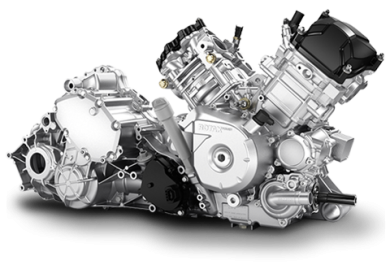

Type | HD7: 52 hp / 42 lb-ft, Rotax® ACE (Advanced Combustion Efficiency) 650 cc single cylinder, liquid cooled
HD9: 65 hp / 59 lb-ft, Rotax® 976 cc, V-twin, liquid cooled |
Fuel Delivery System | Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI) |
Transmission | HD7: pDrive primary CVT with engine braking and Electronic Drive Belt Protection L / H / N / R / P
HD9: PRO-TORQ CVT with Quick Response System (QRS), high airflow ventilation and Electronic Drive Belt Protection Extra-L / H / N / R / P |

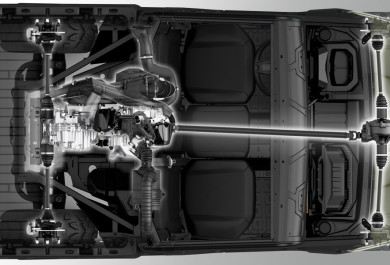

Drive Train | Selectable 2WD / 4WD with Visco-Lok† auto-locking front Differential |
Driving Assistance | Electronic Hill Descent Control ECO™ / ECO Off / Work modes |
Power Steering | N/A |
Speed category | Up to 60 km/h |
SUSPENSIONS
+
|
Front Suspension | Double A-arm
25.4 cm travel |
Front Shocks | Twin tube gas charged shocks |

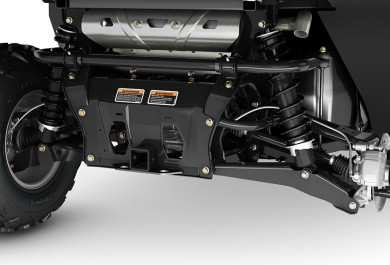

Rear Suspension | TTA with external sway bar
25.4 cm travel |
Rear Shocks | Twin tube gas charged shocks |
TIRES / WHEELS
+
|
Front Tires | XPS Trail Force 27 x 9 x 14 in. |
Rear Tires | XPS Trail Force 27 x 11 x 14 in. |
Wheels | 14 in. steel |
BRAKES
+
|
Front | Dual 220 mm ventilated disc brakes with hydraulic twin-piston calipers |
Rear | Single 220 mm ventilated disc brake with hydraulic twin-piston calipers |
DIMENSIONS
+
|
L x W x H | 121 x 62 x 76 in. (307.1 x 157.5 x 193 cm) |
Wheelbase | 83 in. (211.5 cm) |
Ground Clearance | 11 in. (28 cm) |
Dry Weight | 1,475 lb (669.2 kg) |

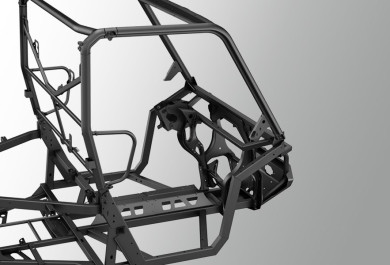

Chassis Cage | Profiled cage. ROPS approved |

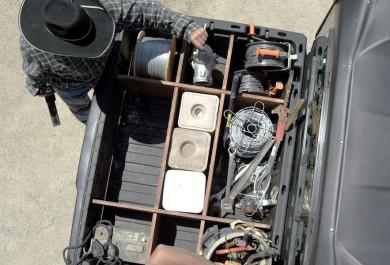

Cargo Box Dimensions | 38 x 54.5 x 12 in. (96.5 x 138.4 x 30.5 cm) |
Cargo Box Capacity | 1,000 lb (454 kg) / California only: 600 lb (272.2 kg) |
Tailgate Load Capacity | 250 lb (113.4 kg) |
Storage Capacity | Total: 6.5 gal (24.5 L)
Waterproof and removable box under passenger seat: 5.6 gal (21 L) Armrests and cup holders: 0.9 gal (3.5 L) |
Towing Capacity | 2,500 lb (1134 kg) |
Payload Capacity | 1,500 lb (680 kg) |
Fuel Capacity | 10.6 gal (40 L) |
Person Capacity | 3 |
FEATURES
+
|

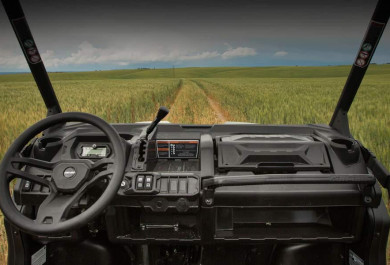

Gauge | 4.5 in. (11.4 cm) wide digital display: Speedometer, tachometer, odometer, trip and hour meters, fuel, gear position, ECO / ECO Off / Work modes, seat belt and 4 x 4 indicator, front and rear diff lock indicators, diagnostics, clock, battery voltage, engine temperature |
Battery | 12 V (18 amp/h) |
Magneto | 650W |
Instrumentation | Lighter type DC outlet in console (20-A) |
Lighting | 140 W lighting output from four 35-W reflectors ensuring a wide visibility and LED tail lights |
Winch | N/A |
Seat | VERSA-PRO bench seat with passenger seats flipping up, underside hooks and contoured bench to improve entrance/exit of the cab |
Protection | Integrated front steel bumper HMWPE full skid plate |
Hitch Type | 2-in. hitch receiver with tow ball, 7-pin trailer connection (12V) |
Steering Wheel | Adjustable tilt steering |
WARRANTY
+
|
Factory | 2 years BRP limited warranty |
